How to install fiber optic cable boards

Installing a fiber optic cable board involves careful planning, precise cable handling, proper termination, and thorough testing to ensure reliable network performance.

Planning and Preparation

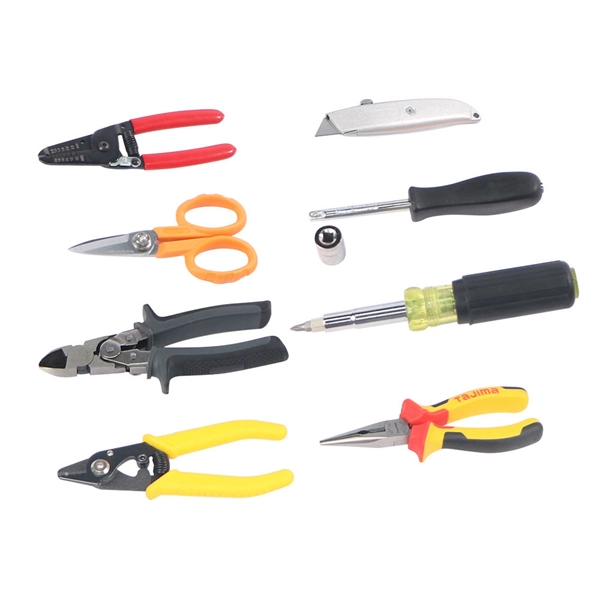

Before installation, conduct a site survey to determine the optimal route for fiber cables, identify potential obstacles, and ensure compliance with local building codes and safety standards ( ). Select the appropriate fiber type (single-mode or multimode) and cable type (armored or dielectric) based on bandwidth requirements and environmental conditions. Ensure you have the necessary tools, including fusion splicers, cleavers, cable strippers, and OTDR testers.

Routing and Securing

Route the fiber cables carefully through conduits, trays, or innerducts, avoiding sharp bends or excessive tension, as even minor stress can degrade signal quality ( ). Leave extra space in conduits (typically 25–40%) for future expansion. Secure cables using fiber clips or ties without compressing the fibers.

Termination and Connection

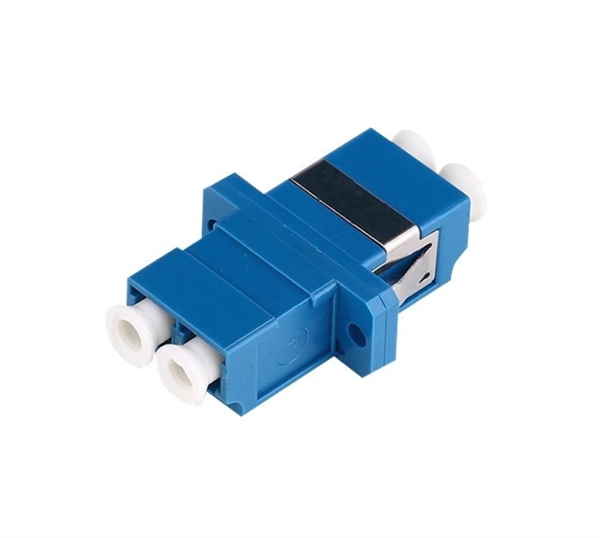

Terminate the fiber cables at the board using fusion splicing or mechanical connectors, depending on the board type ( ). Ensure each fiber is properly labeled and organized to maintain clarity and ease of maintenance. Connect the terminated fibers to the patch panel or optical network terminal (ONT), ensuring proper alignment and minimal signal loss.

Testing and Verification

After installation, test each fiber strand using an OTDR (Optical Time-Domain Reflectometer) or power meter to measure signal loss and verify continuity ( ). Document all test results, cable routes, and termination points for future troubleshooting and network upgrades.

Best Practices

• Handle fibers with care; avoid bending beyond the minimum bend radius.
• Wear safety glasses to protect against fiber shards.
• Keep the work area clean to prevent contamination of connectors.
• Follow industry standards such as TIA/EIA-568, ANSI/NECA/FOA-301, and NEC Article 770 for safety and performance compliance ( ). By following these steps, you can ensure a high-performance, reliable fiber optic network that supports long-term connectivity and scalability.
