How to use an optical splitter

Optical splitters are passive devices used to divide a single optical signal into multiple outputs or combine multiple signals into one, enabling efficient distribution in fiber networks.

Function and Applications

Optical splitters, also called fiber optic splitters or beam splitters, are passive components that operate without electricity, relying on the physics of light to distribute signals across multiple fibers . They are widely used in Passive Optical Networks (PON), including EPON, GPON, BPON, FTTX, and FTTH systems, allowing a single fiber from a central office to serve multiple subscribers efficiently . For example, a 1:32 splitter can connect one fiber to 32 homes, reducing infrastructure costs and simplifying network expansion .

How Optical Splitters Work

The working principle involves manipulating light within the fiber. Light traveling through a fiber core can be split by fusing and tapering fibers together (Fused Biconical Taper, FBT) or using planar lightwave circuits (PLC) fabricated on a silica substrate . The splitter redistributes the optical power among output fibers according to a split ratio (e.g., 1:2, 1:4, 1:32), with each output receiving a portion of the input signal . Key performance metrics include:

• Insertion Loss: Signal attenuation caused by splitting. Higher split ratios increase loss.
• Uniformity: Consistency of output power across all ports.
• Bidirectional Functionality: Most splitters can split outgoing signals and combine incoming signals, supporting two-way communication .

Types of Optical Splitters

• FBT Splitters: Use fused and tapered fibers; cost-effective for small split configurations (1×2, 1×4). Losses are wavelength-dependent and spectral uniformity is limited .
• PLC Splitters: Use photolithographic waveguides on silica substrates; suitable for larger splits (1×16, 1×32, 1×64) with uniform output and low wavelength sensitivity .

Practical Usage

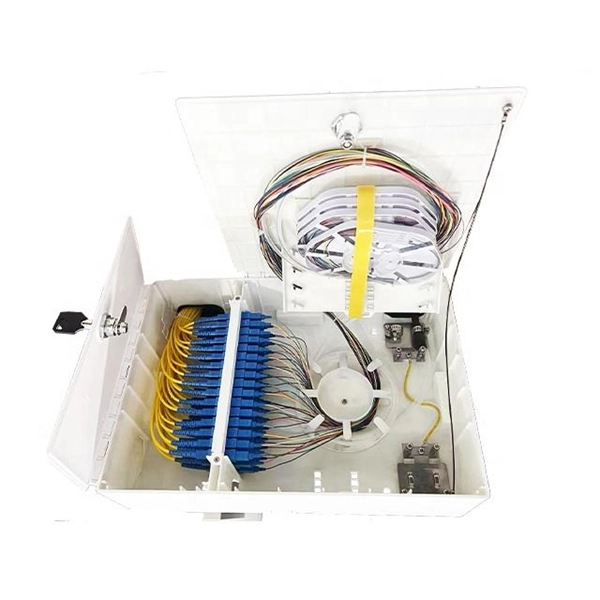

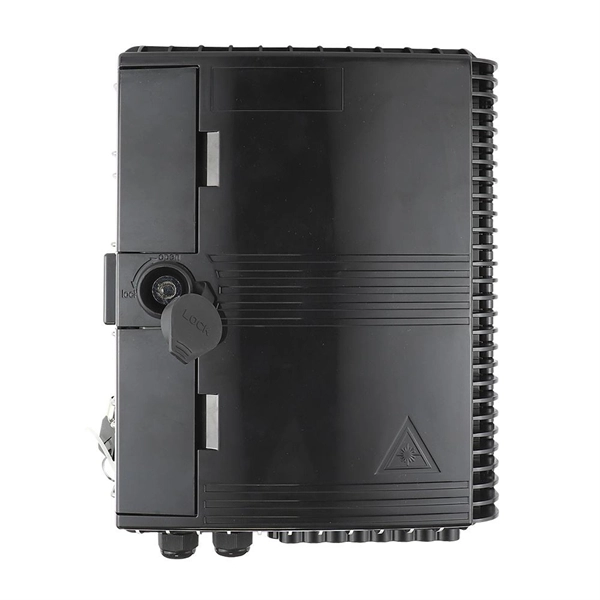

Optical splitters are installed in patch panels, optical distribution frames (ODFs), or outdoor enclosures. They are essential for point-to-multipoint networks, distributing signals from the central office to feeder, distribution, and drop networks . They allow network scalability, efficient resource utilization, and reliable signal delivery without active power sources. In summary, optical splitters are critical for expanding fiber networks, enabling multiple users to share a single fiber while maintaining signal quality and network efficiency .
