Coupler Fiber Pigtail

A coupler fiber pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other, designed to connect fiber optic couplers or collimators to network cables via splicing.

Definition and Structure

A fiber pigtail is a short length of optical fiber, typically 0.5 to 2 meters, with a factory-installed connector on one end and a bare fiber on the other. The connector end is polished and tested for low insertion loss and high return loss, while the bare end is intended for fusion or mechanical splicing to the main fiber cable in the field . When used with a coupler or GRIN collimator, the pigtail allows precise alignment and connection between the optical device and the fiber network .

Applications

Coupler fiber pigtails are commonly used in:

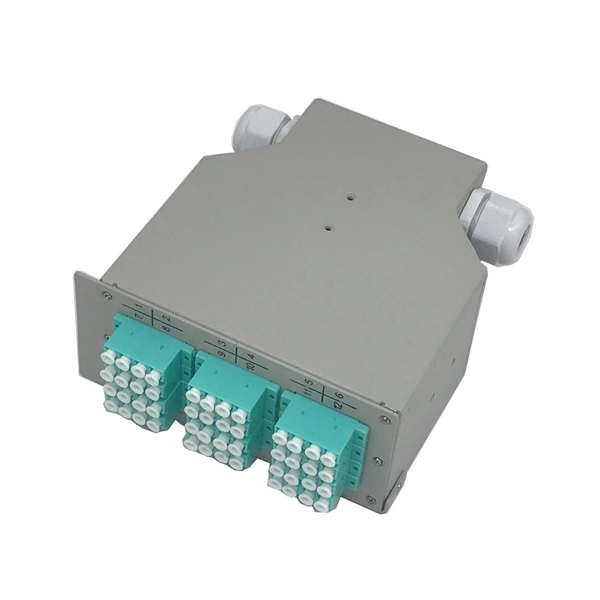

• Optical distribution frames (ODFs) and patch panels for terminating bulk fiber cables .
• Fiber optic couplers and splitters, where the pigtail connects the coupler's input/output ports to the network fibers .
• Laboratory setups with GRIN lenses or collimators, enabling free-space beam coupling while maintaining fiber connectivity .
• FTTH (Fiber to the Home) deployments, where pigtails provide reliable, low-loss connections to subscriber lines .

Advantages

• Factory-grade connector quality ensures consistent performance compared to field-terminated connectors .
• Time and labor savings, as splicing a pigtail is faster and more reliable than installing connectors in the field .
• Flexibility, allowing connection to any fiber system or optical device without custom-length patch cords .
• Compatibility with mass fusion splicing, enabling simultaneous splicing of multiple fibers in ribbonized pigtails for high-density applications .

Types and Variations

• Single-mode, multimode, or polarization-maintaining fibers depending on network requirements .
• Connector types: SC, ST, LC, or custom connectors for specific equipment .
• Length and buffer options: Standard lengths range from 0.5 m to 2 m, with tight-buffer or ribbonized configurations for mass fusion splicing .
• Pigtailed couplers: Preassembled couplers with fiber pigtails simplify integration into optical systems, reducing alignment errors and installation time .

Key Differences from Patch Cords

Unlike patch cords, which have connectors on both ends, pigtails have a connector on one end and a bare fiber on the other, making them ideal for permanent splicing to bulk cables or optical devices . This distinction is crucial when connecting couplers, splitters, or ODFs where one end must be spliced rather than plugged in. In summary, coupler fiber pigtails provide a reliable, factory-terminated interface between optical devices and fiber networks, combining precision, flexibility, and ease of installation for both field and lab applications .
