Network Fiber Optic Cable Connection Box

A fiber optic cable connection box, also known as a termination or distribution box, organizes, protects, and manages fiber connections for reliable network performance.

Overview

A fiber optic connection box serves as a centralized point for terminating and managing fiber optic cables. It provides cable protection, organization, and secure access for technicians, reducing the risk of damage and ensuring efficient network operation . These boxes are commonly used in FTTH (Fiber to the Home), FTTB (Fiber to the Building), data centers, office buildings, and industrial facilities .

Key Features

• Enclosure and Material: Boxes are made from durable materials such as steel, aluminum, or reinforced plastics, often with dustproof and waterproof ratings (IP65–IP68) for indoor and outdoor use .
• Cable Management: Includes splicing trays, holders, and adapter panels to organize fibers and prevent bending or breakage .
• Connector Compatibility: Supports various fiber types and connectors, including SC, LC, FC, ST, and MTP, for both single-mode and multimode fibers .
• Port Capacity: Available in multiple port configurations, typically ranging from 4 to 48 ports, to accommodate different network sizes .
• Mounting Options: Can be wall-mounted, rack-mounted, or desktop-installed, depending on space and deployment requirements .
• Protection Features: Many boxes include dust covers, theft-proof locks, and dual earth systems for enhanced security and reliability .

Types of Fiber Optic Boxes

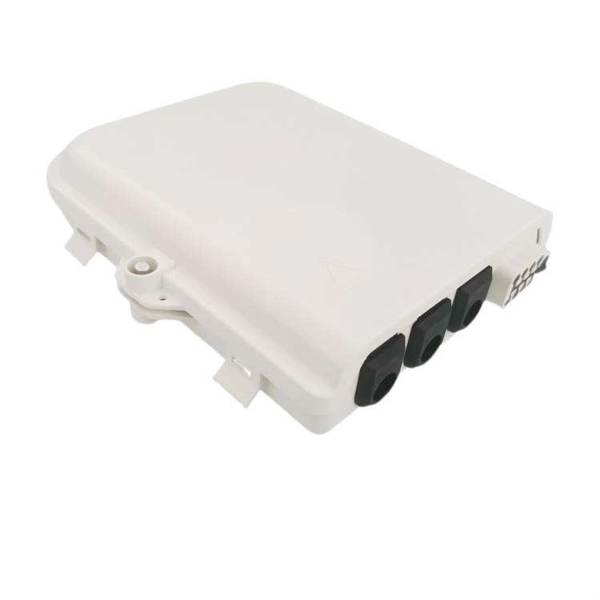

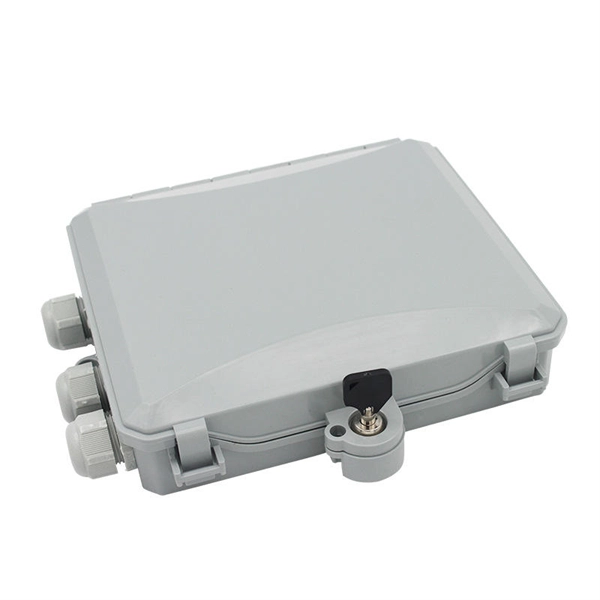

1. Wall Mount Termination Boxes: Compact and ideal for limited spaces, suitable for residential or small office networks .

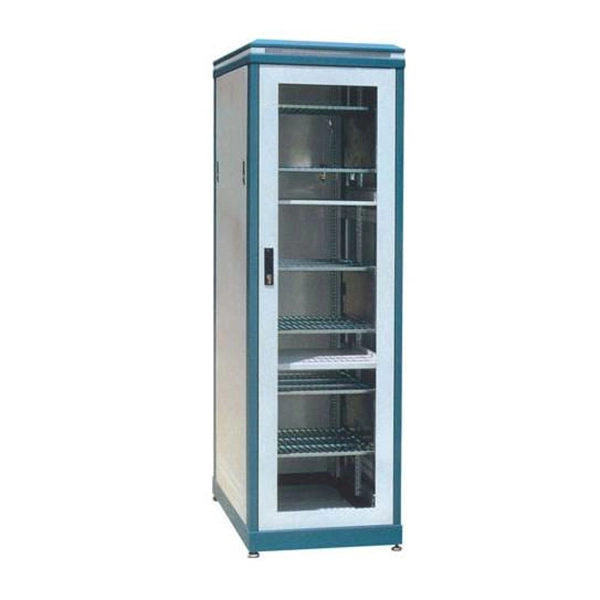

2. Rack Mount Enclosures: Designed for 19" or 21" racks, available in 1U to 4U sizes, ideal for high-density data centers .
3. Outdoor/Harsh Environment Boxes: Built to withstand weather, UV exposure, and mechanical stress, often with IP65–IP68 ratings .

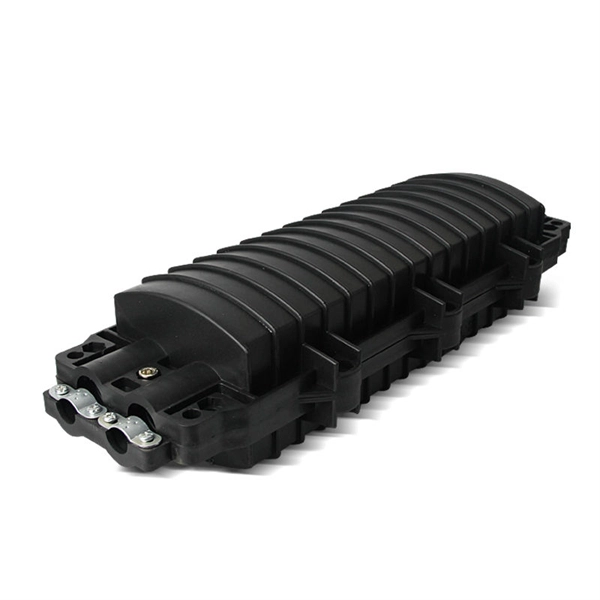

4. Splice and Distribution Boxes: Combine cable splicing and distribution functions, allowing both termination and branching of fiber lines .

Applications

• Residential Broadband: FTTH networks for homes and apartments .
• Commercial Buildings: FTTB networks, office LANs, and server rooms .
• Industrial Facilities: Robust outdoor or indoor networks requiring secure fiber management .
• Data Centers: High-density fiber management with rack-mounted enclosures .

Summary

A network fiber optic cable connection box is essential for efficient, organized, and protected fiber optic networks. Choosing the right box depends on network size, fiber type, connector compatibility, mounting requirements, and environmental conditions. These boxes ensure reliable connectivity, simplify maintenance, and extend the lifespan of fiber optic infrastructure .
